API Reference

Complete parameter definitions, response schemas, feature flags, and error codes for all four Vault Platform Power Platform connector actions.

Actions Overview

Action	Method	Gateway Route
Generate Document	POST	`/api/gateway/v1/documents/generate`
Get Document URL	GET	`/api/gateway/v1/documents/open`
Check Workflow Status	GET	`/api/gateway/v1/workflows/{workflowId}`
Download Sealed PDF	GET	`/api/gateway/v1/workflows/{workflowId}/pdf`

Generate Document

Renders a PDF from a template and a JSON data payload stored in SharePoint. Returns a download URL and, when a workflow template is configured, a workflowId for tracking progress.

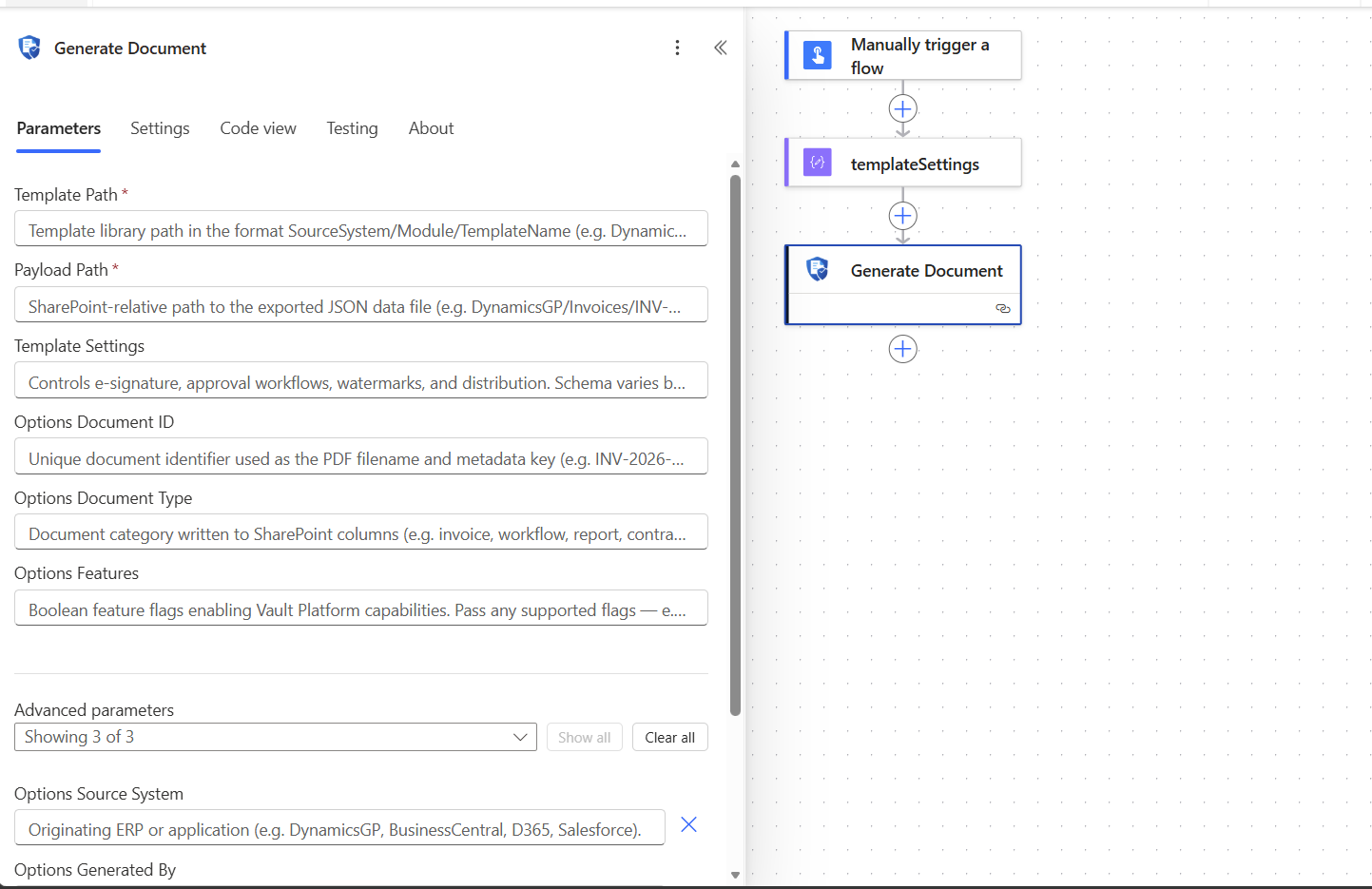

Request Parameters

Parameter	Required	Type	Description
Template Path	Yes	string	Path to the template in the template library (e.g. `DynamicsGP/Workflows/vendor-onboarding.vpdf`)
Payload Path	Yes	string	SharePoint-relative path to the JSON data file (e.g. `DynamicsGP/Workflows/vendor-onboarding-payload.json`)
Template Settings	No	object	Controls e-signature, approval workflows, watermarks, and distribution. See Template Settings below.
Options	No	object	Document metadata and feature flags. See Options below.

Options

The options object controls document identity, classification, and which Vault Platform features are activated for this render. All sub-fields are optional.

Field	Type	Description
`documentId`	string	Unique document identifier - used as the PDF filename and written to SharePoint metadata (e.g. `INV-2026-001`)
`docType`	string	Document category written to SharePoint columns (e.g. `invoice`, `workflow`, `contract`, `report`)
`sourceSystem`	string	Originating ERP or application (e.g. `DynamicsGP`, `BusinessCentral`, `D365`, `Salesforce`)
`generatedBy`	string	Email or identity of the user or service principal that triggered generation
`customColumns`	object	Key-value pairs (string values) written to custom SharePoint columns on the generated document item
`features`	object	Boolean feature flags. Any flag can be included - see Feature Flags.

documentId and docType live inside options

In Power Automate, set documentId and docType inside the Options field - not as top-level parameters. Top-level documentId and documentType fields do not exist in this connector.

Feature Flags

Pass any combination of boolean flags inside options.features. Unknown flags are forwarded to the Dispatcher and ignored if not supported.

Flag	Description
`generatedDocuments`	Upload the rendered PDF to the GeneratedDocuments library in SharePoint / Blob Storage
`auditSnapshot`	Write a `PDFGenerated` audit event to the AuditLogs library
`dataRedaction`	Apply field-level redaction policy defined in the template
`explainDocument`	Capture a machine-readable explanation trace of every render decision. Auto-enabled when `vaultESign`, `dataRedaction`, or `section508Accessibility` is active.
`vaultESign`	Trigger electronic signature workflow after generation (requires `templateSettings.esign` or `templateSettings.workflow`)
`immutableAudit`	Write a tamper-evident audit record to the enterprise audit store
`vaultDelivery`	Route the document through the Vault Delivery distribution service
`section508Accessibility`	Apply PDF/UA-1 tagging and generate an accessibility compliance trace
`vaultWorkflow`	Enable Vault workflow engine integration

Template Settings

Trigger an approval or review workflow after generation. Recipients receive an email with a link to review the document.

{
  "workflow": {
    "enabled": true,
    "recipients": [
      {
        "email": "[email protected]",
        "displayName": "Finance Manager"
      }
    ],
    "organizationName": "Contoso",
    "message": "Please review and approve this document.",
    "expiresInDays": 7,
    "requireOtp": false,
    "appendElectronicEvidence": true
  }
}

Field	Type	Description
`enabled`	boolean	Must be `true` to trigger the workflow
`recipients`	array	List of `{ email, displayName }` objects
`organizationName`	string	Displayed in the workflow email
`message`	string	Custom message shown to recipients
`expiresInDays`	integer	Days before the workflow link expires
`requireOtp`	boolean	Require one-time passcode for recipient verification
`appendElectronicEvidence`	boolean	Attach electronic evidence certificate to the sealed PDF

Route the document for electronic signature via the Vault eSign engine.

{
  "esign": {
    "enabled": true,
    "signingMode": "sequential",
    "expiresInDays": 14,
    "signers": [
      {
        "email": "[email protected]",
        "displayName": "Jane Smith",
        "role": "Signer",
        "slotIndex": 1
      }
    ],
    "message": "Please sign this agreement."
  }
}

Field	Type	Description
`enabled`	boolean	Must be `true`
`signingMode`	string	`"sequential"` (signers sign in order) or `"parallel"`
`expiresInDays`	integer	Days before signature link expires
`signers`	array	List of signer objects
`message`	string	Message shown to each signer

Apply a text watermark to every page of the generated PDF.

{
  "watermark": {
    "enabled": true,
    "value": "CONFIDENTIAL",
    "opacity": 0.3
  }
}

Field	Type	Description
`enabled`	boolean	Must be `true`
`value`	string	Watermark text
`opacity`	number	Opacity from 0 (invisible) to 1 (opaque). Default: `0.3`

Full Request Example

{
  "templatePath": "DynamicsGP/Workflows/vendor-onboarding.vpdf",
  "payloadPath": "DynamicsGP/Workflows/vendor-onboarding-payload.json",
  "templateSettings": {
    "workflow": {
      "enabled": true,
      "recipients": [{ "email": "[email protected]", "displayName": "Acme AP" }],
      "organizationName": "Contoso",
      "message": "Please complete vendor onboarding. Account: Vendor_106",
      "expiresInDays": 7,
      "requireOtp": false,
      "appendElectronicEvidence": true
    }
  },
  "options": {
    "documentId": "Vendor_107",
    "sourceSystem": "DynamicsGP",
    "docType": "workflow",
    "generatedBy": "[email protected]",
    "customColumns": { "vendorId": "Vendor1001", "vendorName": "Jane Smith" },
    "features": {
      "generatedDocuments": true,
      "auditSnapshot": true,
      "dataRedaction": true,
      "explainDocument": true,
      "vaultESign": true,
      "immutableAudit": true,
      "vaultDelivery": true
    }
  }
}

Response

Generate Document returns the PDF binary directly - not JSON. Metadata is in the response headers.

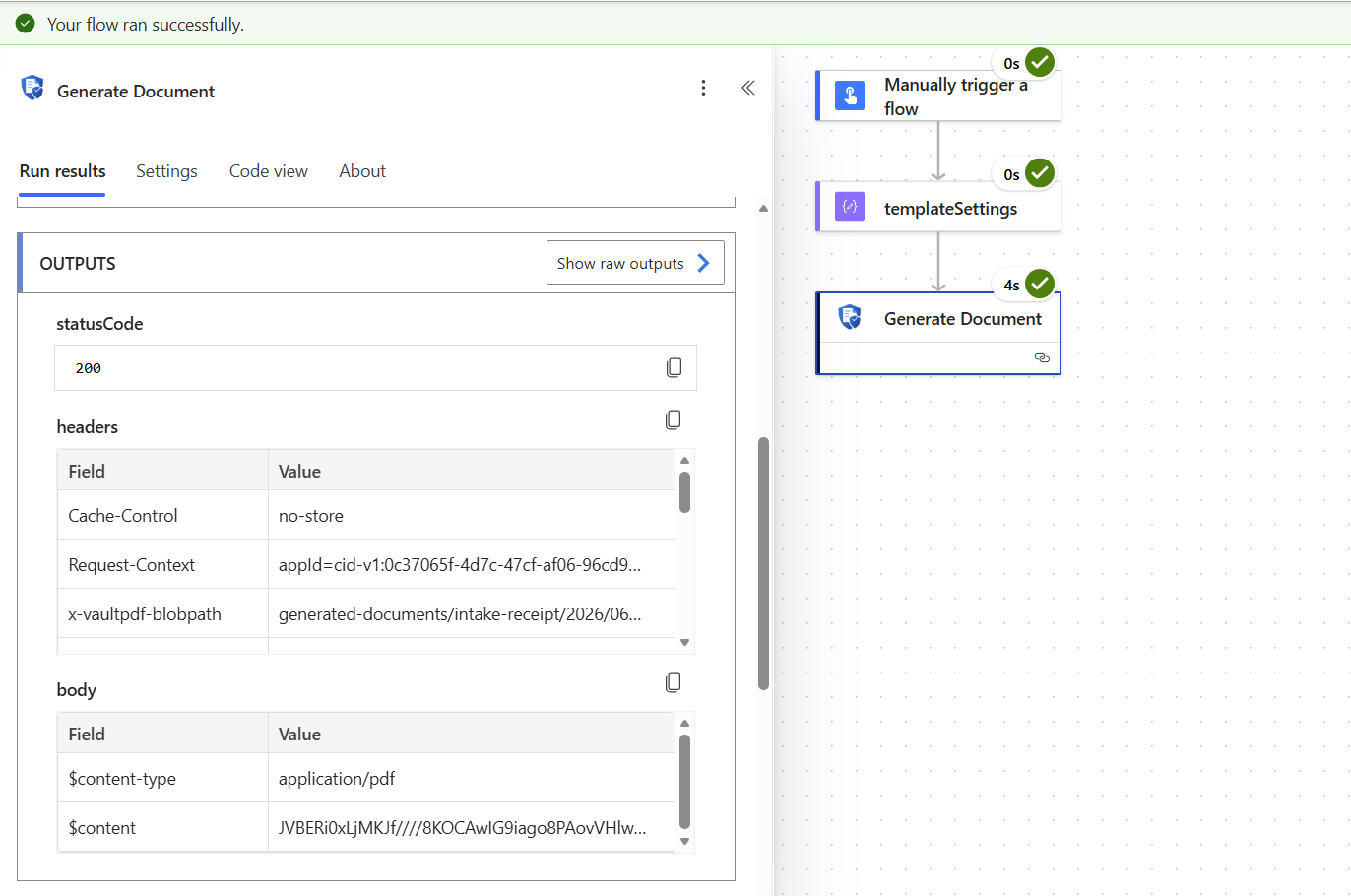

Generate Document successful run showing 200 status, x-vaultpdf-blobpath header, and PDF binary body

Response header	Description	Expression in Power Automate
`x-vaultpdf-blobpath`	Blob path of the stored PDF	`outputs('Generate_Document')?['headers']['x-vaultpdf-blobpath']`
`x-vaultpdf-workflowid`	Workflow ID - only present when a workflow was started	`outputs('Generate_Document')?['headers']['x-vaultpdf-workflowid']`
`x-vaultpdf-correlationid`	Unique render ID for support	`outputs('Generate_Document')?['headers']['x-vaultpdf-correlationid']`

The response body is the PDF binary ($content-type: application/pdf). You can pass it directly to Send an email (as attachment) or Create file (SharePoint/OneDrive) actions.

Getting the blob path and workflow ID in your flow

Blob path:   outputs('Generate_Document')?['headers']['x-vaultpdf-blobpath']
Workflow ID: outputs('Generate_Document')?['headers']['x-vaultpdf-workflowid']

Pass the blob path to Get Document URL to retrieve a fresh download link. Pass the workflow ID to Check Workflow Status to poll progress.

Error Responses

Status	Description	Common Cause
400	Invalid request	`templatePath` and `payloadPath` are both required; one is missing or malformed
401	Authentication failed	Azure AD token acquisition failed - check connection parameters
403	Access denied	Token `tid` or `aud` does not match Dispatcher configuration
404	Template or payload not found	File does not exist at the specified SharePoint path
500	Generation failed	Template rendering error - use `correlationId` when contacting support

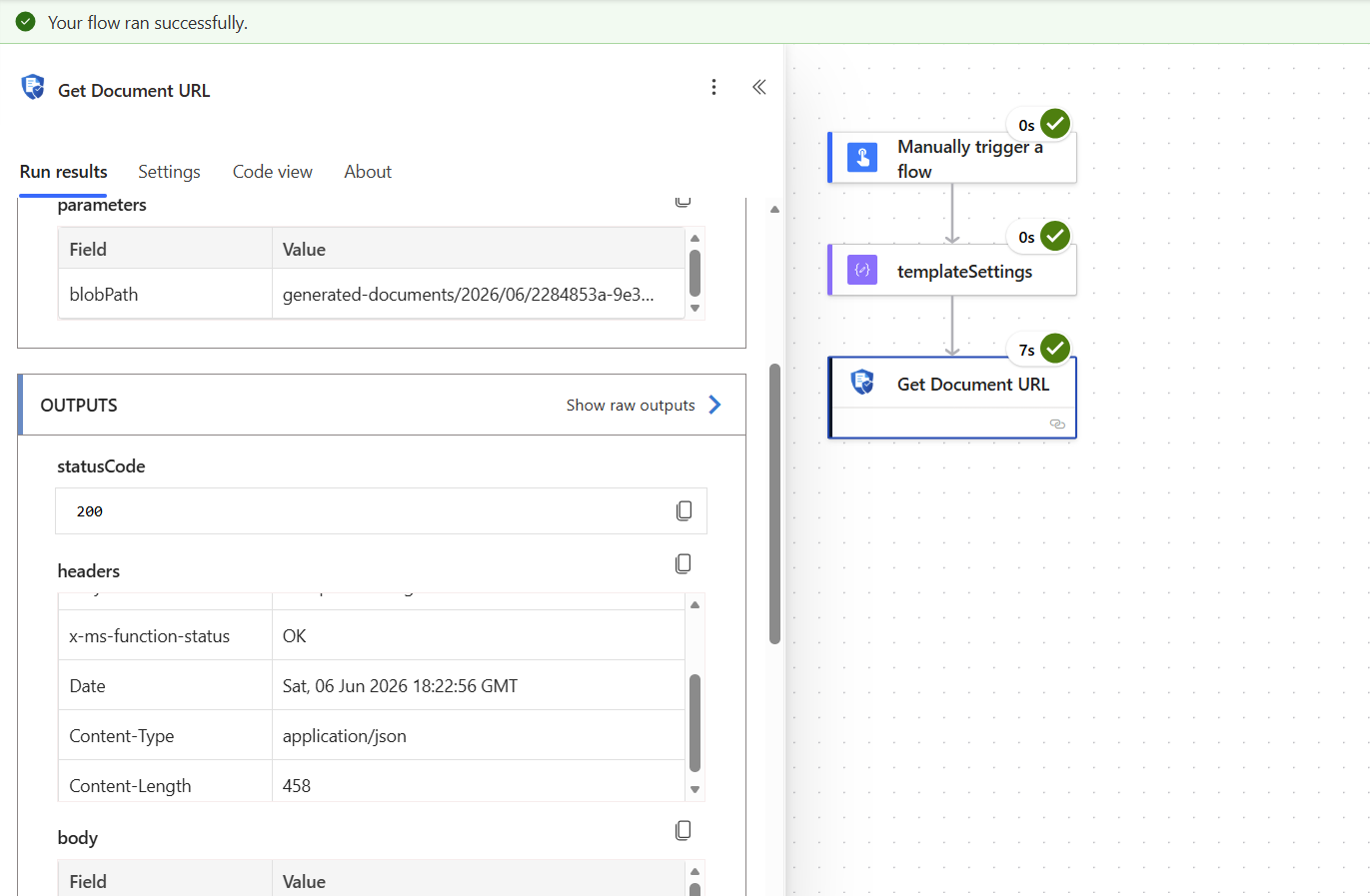

Get Document URL

Returns a short-lived (5 minute) signed download URL for a document stored in Blob Storage or SharePoint. Use the documentPath returned by Generate Document.

Parameters

Parameter	Required	Type	Description
Blob Path	Yes	string	Container-qualified path returned by Generate Document (e.g. `generated-documents/2026/06/file.pdf`)

Response

{
  "url": "https://stcontoso.blob.core.windows.net/generated-documents/...?sv=..."
}

Field	Type	Description
`url`	string	HTTPS signed download URL. Valid for 5 minutes - do not store long-term.

Link expiry

Download links expire after 5 minutes. Call Get Document URL again each time you need a fresh link. Do not store the URL - store the documentPath instead and generate links on demand.

Error Responses

Status	Description
401	Authentication failed
403	`blobPath` container not in the allowed list
404	Document not found at the specified path
500	SAS URL generation failed (check Dispatcher storage configuration)

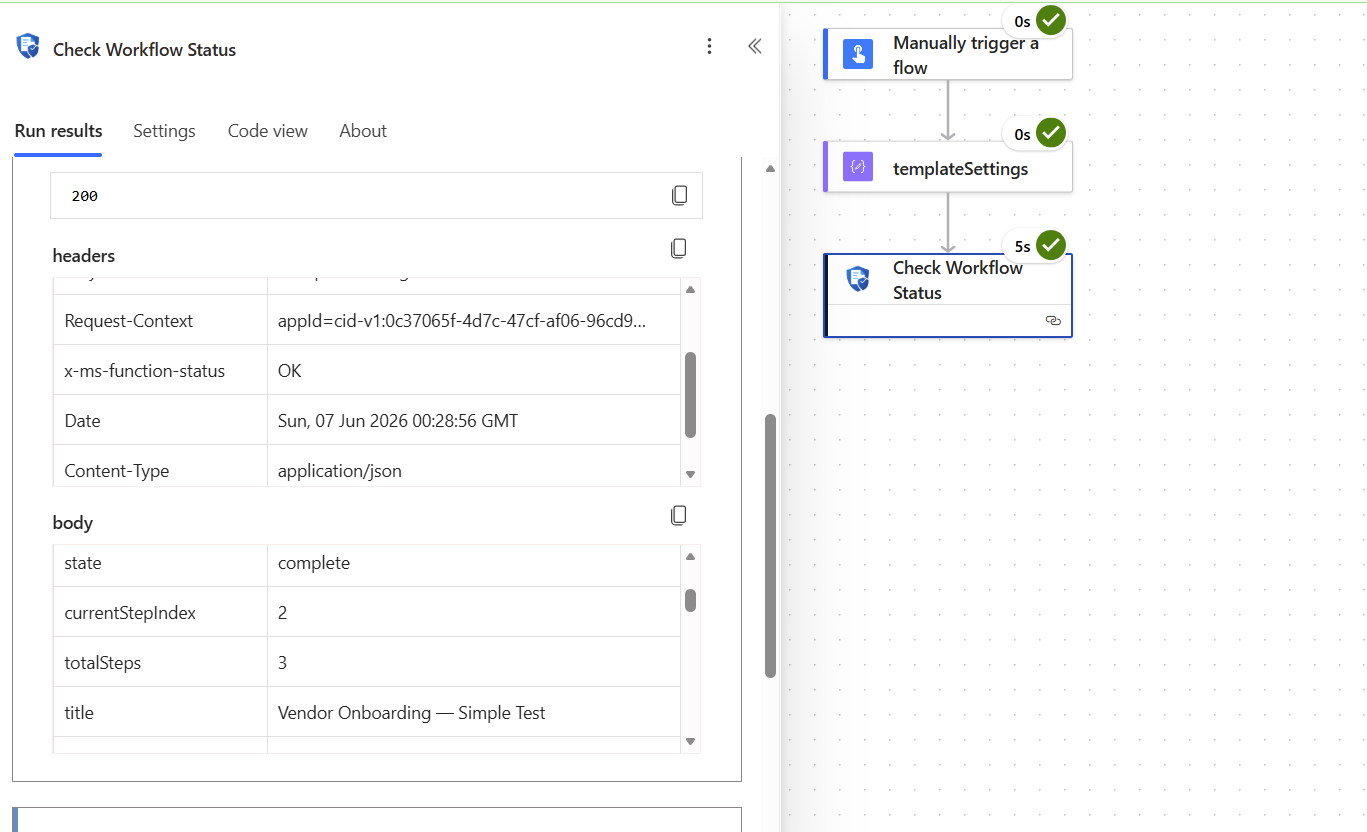

Check Workflow Status

Returns the current state of a document workflow. Poll this action until isComplete or isRejected is true, then call Download Sealed PDF.

Parameters

Parameter	Required	Type	Description
Workflow ID	Yes	string	The `workflowId` returned by Generate Document

Response

{
  "workflowId": "a3f8c201-d4e9-47b2-91c3-556677880001",
  "state": "awaiting_signature",
  "isComplete": false,
  "isRejected": false,
  "currentStep": 1,
  "totalSteps": 2,
  "title": "Vendor Onboarding Workflow"
}

Field	Type	Description
`workflowId`	string	The workflow ID (as requested)
`state`	string	Current state - see state values below
`isComplete`	boolean	`true` when all steps are done and the sealed PDF is available
`isRejected`	boolean	`true` when a signer or approver rejected the document
`currentStepIndex`	integer	Index of the current step (1-based)
`totalSteps`	integer	Total number of steps in the workflow
`title`	string	Display name of the workflow template

Workflow States

State	Meaning
`pending`	Workflow created, first email not yet sent
`in_progress`	Workflow active, awaiting recipient action
`awaiting_signature`	Specifically waiting for one or more signatures
`complete`	All steps complete - sealed PDF is available
`rejected`	A recipient rejected the document - workflow is closed

Recommended Polling Strategy

Scenario	Interval	Max iterations
Administrative approval workflows	Every 10 minutes	144 (24 hours)
E-signature workflows	Every 5 minutes	288 (24 hours)
Time-critical signature requests	Every 2 minutes	180 (6 hours)

Do not poll too frequently

Excessive polling contributes toward the Dispatcher's rate limit of 100 requests per 60 seconds per tenant/app. Use delays appropriate to the workflow type.

Error Responses

Status	Description
401	Authentication failed
404	Workflow ID not found or does not belong to this tenant
500	Dispatcher error retrieving workflow state

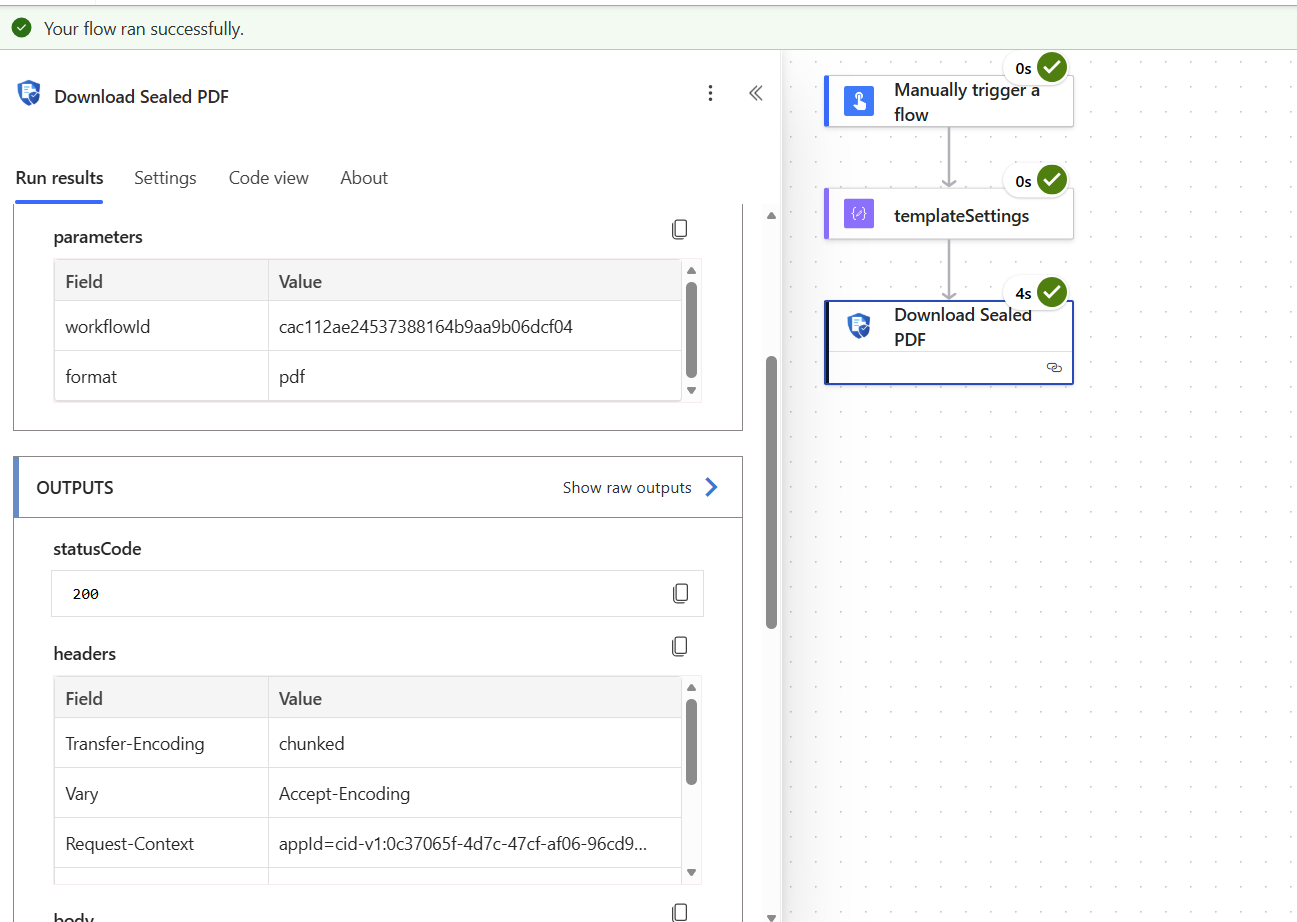

Field	Type	Description
`downloadUrl`	string	Signed download URL for the sealed PDF. Valid for 5 minutes.

The sealed PDF includes the signed or approved document content, signature zones with signer identity and timestamps, and - when appendElectronicEvidence is enabled - an evidence certificate with a full audit trail and integrity hash.

Error Responses

Status	Description
401	Authentication failed
404	Workflow not found, not complete, or sealed PDF not yet available
500	SAS URL generation failed

Authentication Errors

These errors come from the connector script before the request reaches the Dispatcher.

Error message	Cause	Fix
`Connection parameter 'tenantId' is missing`	Policy template instances not applied	Redeploy the connector; verify 5 `policyTemplateInstances` in downloaded `apiProperties.json`
`Connection parameter 'clientId' is missing`	Same as above	Same fix
`Azure AD rejected the token request (invalid_request): AADSTS90002...`	Tenant ID wrong or has whitespace	Delete and recreate the connection; enter the tenant GUID with no spaces
`Invalid Client ID or Client Secret`	Wrong `clientId` or `clientSecret`	Verify in Azure Portal → App registrations → Certificates & secrets
`App not authorised for client_credentials`	App Registration not configured for client credentials	Check App Registration API permissions or contact Dispatcher administrator
`Invalid OAuth Scope`	Scope format wrong	Use exactly `api://<dispatcher-app-client-id>/.default`
`Azure AD tenant not found`	Tenant GUID is wrong	Verify tenant ID in Azure Portal → Azure Active Directory → Overview
`Authentication timed out`	Network issue reaching `login.microsoftonline.com`	Confirm outbound connectivity from Power Platform to Azure AD

Frequently Asked Questions

Connector & Connection

Yes. A connection created in a Power Platform environment is available to all flows and apps in that environment. You only need to create it once per environment.

Yes. Each connection stores its own Dispatcher URL and credentials. Create one connection per environment and point each to the corresponding Dispatcher instance.

Power Platform stores securestring connection parameters encrypted at rest. The value is never visible in flow run history, action outputs, or logs after the connection is created.

Generate Document

Yes. The features field accepts any boolean key - unknown flags are forwarded to the Dispatcher and activated if the Dispatcher version you are running supports them. You never need to update the connector to use new feature flags.

The connector runs a small C# script (script.csx) on every call - it acquires an Azure AD token and forwards the request to the Dispatcher. This script has a 5-second CPU execution limit, but that limit only covers the script's own code - time spent waiting for the Azure AD token response and the Dispatcher to generate the PDF does not count against it. The practical ceiling is the Power Automate flow step timeout of 120 seconds. Most document generations complete in 5–20 seconds depending on template complexity.

Both are returned in response headers, not the body. Read them with Power Automate expressions:

Blob path: outputs('Generate_Document')?['headers']['x-vaultpdf-blobpath']
Workflow ID: outputs('Generate_Document')?['headers']['x-vaultpdf-workflowid']

Workflows & Signatures

Workflow completion depends on recipient action (signing or approving). The workflow remains in_progress or awaiting_signature until all recipients act. Check the expiresInDays setting in your templateSettings - if the window elapses without action, isRejected may become true due to expiry.

isRejected becomes true and the workflow closes. No further signing or approval is possible on that document. A new document must be generated and a new workflow started.

Only after state is complete on Check Workflow Status. Calling it before that returns 404. Always check the workflow status in a Do Until loop before calling Download Sealed PDF.
