Vault Platform Connector for Power Platform

Connect Power Automate and Power Apps to your organisation's Vault Platform Dispatcher. Generate PDFs, send documents for e-signature and approval workflows, and retrieve sealed documents - without writing code.

Overview

The Vault Platform Connector for Microsoft Power Platform lets Power Automate flows and Power Apps generate PDFs, trigger e-signature and approval workflows, and retrieve sealed documents - all connected to your organisation's self-hosted Vault Platform Dispatcher.

Key characteristics:

No coding required - pre-built actions in Power Automate and Power Apps
Self-hosted - connects to your organisation's own Dispatcher, not a shared service
Service-to-service authentication - uses Microsoft Entra ID client credentials; no user sign-in popups
Data sovereignty - documents and business data never leave your Azure tenant

A Different Kind of Connector

Most document connectors are tightly coupled to specific document types. Adding a new document type means updating the connector, redeploying it, and rebuilding flows. Vault Platform is architected differently.

Why Vault Platform works differently

In Vault Platform, the payload drives behaviour and the template drives rendering. The connector has no knowledge of document types - it simply delivers your payload to the Dispatcher, which resolves the correct template, features, and workflow from the schema. This means you can introduce new document types, templates, and workflows without ever touching the connector or rebuilding flows.

	Traditional Document Connectors	Vault Platform Connector
Actions	One action per document type	Four generic platform actions for everything
New document type	Connector update + flow rebuild required	New template in the library - no connector change
Connector changes	Frequent, tied to business logic	None - the connector is stable
Processing model	Schema-specific per operation	Payload-driven - schema lives in the Dispatcher
Integration lifespan	Brittle; breaks on document type changes	Future-proof - flows survive template evolution

The four connector actions cover the entire document lifecycle regardless of how many document types your organisation manages:

Action	What it does
Generate Document	Render any PDF from any template with any payload
Check Workflow Status	Poll any approval or signature workflow
Download Sealed PDF	Retrieve any completed signed document
Get Document URL	Get a fresh download link for any stored document

Authentication Model

The Vault Platform Connector uses Microsoft Entra ID client credentials (service-to-service authentication).

Unlike delegated OAuth connectors, there is no interactive user sign-in or browser popup. During connection setup, administrators provide the Microsoft Entra ID application details and the connector acquires access tokens automatically for each API request.

Tenant Isolation

Before processing any request, the Dispatcher validates three JWT claims - issuer (iss), audience (aud), and tenant ID (tid). All three must match. A token that passes issuer and audience validation but contains a different tenant ID is rejected, preventing cross-tenant access.

Flow runs an action
    │
    ├── Power Platform reads connection parameters
    │     (Dispatcher URL, Tenant ID, Client ID, Client Secret, Scope)
    │
    ├── Connector requests Microsoft Entra ID token
    │     POST login.microsoftonline.com/{tenantId}/oauth2/v2.0/token
    │     grant_type=client_credentials
    │
    ├── Microsoft Entra ID returns Bearer token
    │     (iss, aud, tid claims validated by Dispatcher)
    │
    └── Request forwarded to Dispatcher with Bearer token
          Dispatcher validates claims - processes request

The Client Secret is stored as an encrypted secret in Power Platform - it is never visible in flow run history, logs, or outputs.

Capabilities

All four Vault Platform actions in the Power Automate action picker

Action	Description	Common Use
Generate Document	Render a PDF from a template and data payload. Supports e-signature, approval workflows, watermarks, and feature flags	Invoice generation, contract creation, onboarding docs
Get Document URL	Retrieve a short-lived (5 min) signed download URL for a stored document	Send download links in emails, display in Power Apps
Check Workflow Status	Poll the current state of a signature or approval workflow	Monitor progress; drive Do Until loops
Download Sealed PDF	Retrieve the final countersigned PDF once a workflow is complete	Archive, email to customer, upload to SharePoint

Prerequisites

IT Admin Setup Required

Before a flow maker can create a connection, an IT admin must complete the Connector Setup & Configuration steps.

The flow maker needs these five values from their IT admin:

Value	Example
Dispatcher URL	`https://func-vaultpdf-contoso.azurewebsites.net`
Microsoft Entra Tenant ID	`c49962a1-53d3-4af8-8d5d-35f34cd0be9c`
Client ID	`9575c697-a0c8-44be-b5d4-20f62473e872`
Client Secret	(provided securely - never share via email)
OAuth Scope	`api://<dispatcher-app-client-id>/.default`

Quick Start

Create a Connection

Open Power Automate

Go to make.powerautomate.com and sign in.

Navigate to Connections

In the left sidebar go to Data → Connections. Click + New connection.

Find the Vault Platform Connector

Search for Vault Platform. Select the connector from the results.

Enter the Five Credential Fields

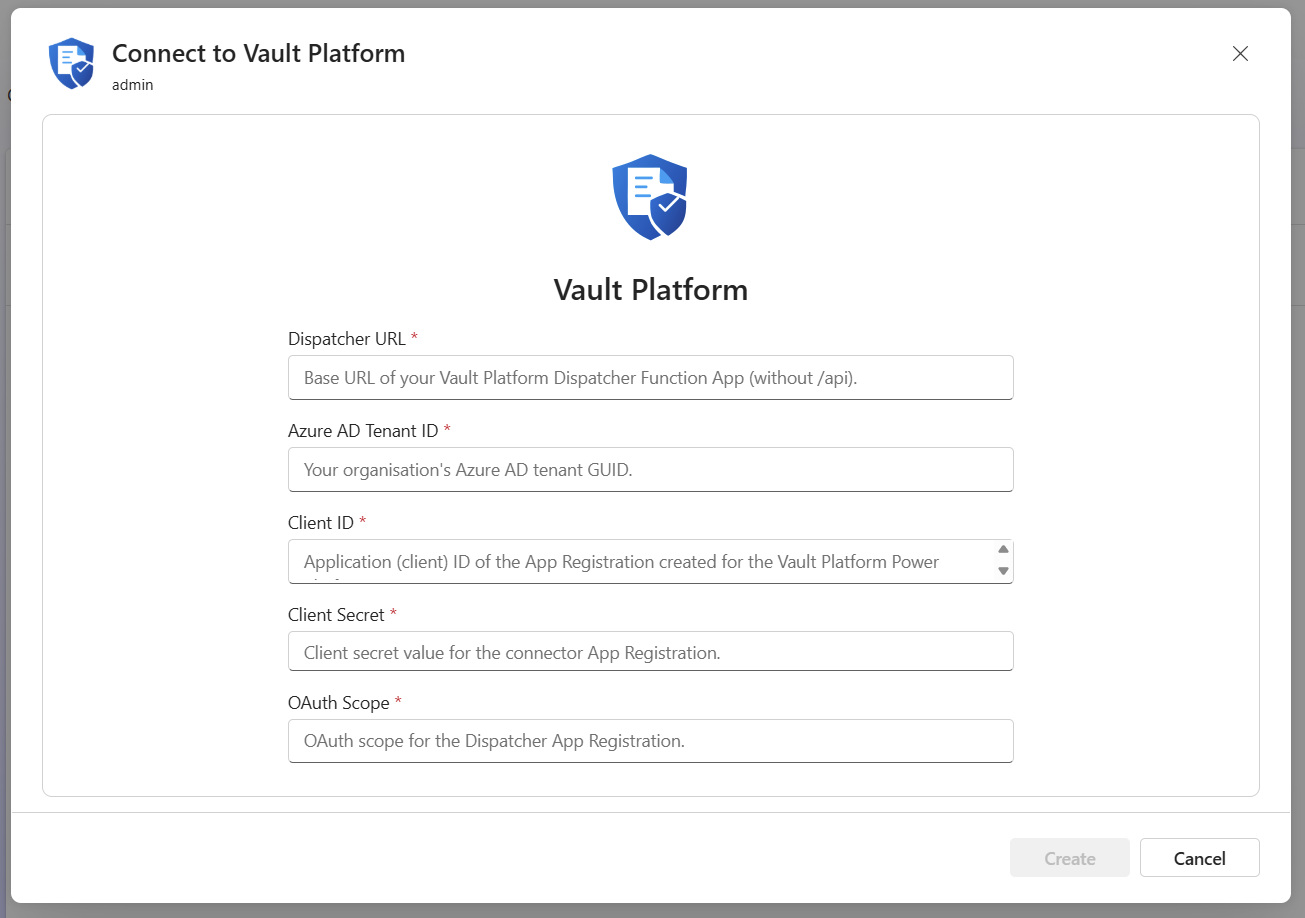

Connect to Vault Platform dialog showing all five credential fields

Field	What to enter
Dispatcher URL	Base URL of the Dispatcher Function App - no `/api` suffix
Microsoft Entra Tenant ID	Your organisation's tenant GUID
Client ID	App Registration client ID
Client Secret	App Registration client secret value
OAuth Scope	`api://<dispatcher-app-client-id>/.default`

No trailing /api in Dispatcher URL

Enter https://func-vaultpdf-contoso.azurewebsites.net - not https://func-vaultpdf-contoso.azurewebsites.net/api. The /api prefix is handled automatically.

Click Create

No browser sign-in window appears. The connection is created immediately. A green checkmark confirms it is ready.

Common Flow Patterns

Generate an invoice PDF and email a download link to the customer.

Trigger: When a record is created (Dataverse – Sales Order)
Condition: Status = Approved

Action: Generate Document
  templatePath: "BC/Sales/SalesInvoice.vpdf"
  payloadPath:  "payloads/[Order Number].json"
  options: {
    "documentId": "[Order Number]",
    "docType": "invoice",
    "sourceSystem": "BusinessCentral",
    "generatedBy": "[email protected]",
    "features": {
      "generatedDocuments": true,
      "auditSnapshot": true
    }
  }

Action: Send an email
  To:      [Customer Email]
  Subject: Invoice [Order Number]
  Body:    Your invoice is ready: [downloadUrl from Generate Document]

Generate a contract PDF and route it for electronic signature. Poll until signed, then archive the sealed document.

Trigger: When a record is created (Dataverse – Contract)

Action: Generate Document
  templatePath: "Legal/Contracts/ServiceAgreement.vpdf"
  payloadPath:  "payloads/contracts/[Contract ID].json"
  templateSettings: {
    "workflow": {
      "enabled": true,
      "recipients": [{ "email": "[Signer Email]", "displayName": "[Signer Name]" }],
      "message": "Please review and sign contract [Contract ID]",
      "expiresInDays": 7
    }
  }
  options: {
    "documentId": "[Contract ID]",
    "docType": "contract",
    "features": {
      "generatedDocuments": true,
      "auditSnapshot": true,
      "vaultESign": true,
      "immutableAudit": true,
      "explainDocument": true
    }
  }

Action: Store Workflow ID in Dataverse record
  workflowId: [Workflow ID from Generate Document]

Action: Do Until  isComplete = true  OR  isRejected = true
  ├── Delay: 5 minutes
  └── Check Workflow Status
        Workflow ID: [Workflow ID]

Action: Condition  isComplete = true
  Yes → Download Sealed PDF (Workflow ID)
         Upload to SharePoint (downloadUrl)
  No  → Send rejection notification

Generate a purchase requisition and route it for management approval.

Trigger: When a record is created (Dataverse – Purchase Requisition)

Action: Generate Document
  templatePath: "Procurement/PurchaseRequisition.vpdf"
  payloadPath:  "payloads/requisitions/[Req ID].json"
  templateSettings: {
    "workflow": {
      "enabled": true,
      "recipients": [{ "email": "[email protected]", "displayName": "Finance Manager" }],
      "message": "Please approve requisition [Req ID]",
      "expiresInDays": 3
    }
  }
  options: {
    "documentId": "[Req ID]",
    "docType": "workflow",
    "features": {
      "generatedDocuments": true,
      "auditSnapshot": true,
      "vaultESign": true,
      "immutableAudit": true
    }
  }

Action: Update record - store Workflow ID

Action: Do Until  isComplete = true  OR  isRejected = true
  ├── Delay: 10 minutes
  └── Check Workflow Status (Workflow ID)

Action: Condition  isComplete = true
  Yes → Update record: Status = Approved
         Download Sealed PDF → attach to record
  No  → Update record: Status = Rejected
         Send notification to requestor

Security Model

Every API call to the Dispatcher is validated against three JWT claims:

Claim	What it validates
`aud`	Token was issued for the Dispatcher's App Registration - rejects tokens for other apps
`iss`	Token was issued by your Microsoft Entra ID tenant - rejects tokens from foreign identity providers
`tid`	Token belongs to the authorised tenant - prevents cross-tenant access

The clientSecret connection parameter is stored as a securestring in Power Platform - encrypted at rest and never visible in flow run history, logs, or action outputs.

Rate Limiting

To prevent runaway loops from overwhelming the Dispatcher:

Limit: 100 requests per 60 seconds per tenant/app combination
When exceeded: 429 Too Many Requests with a Retry-After header
Scope: In-memory per function instance

Next Steps

Connector Setup & Configuration - IT admin App Registration setup and connection creation
API Reference - Full parameter definitions, response schemas, error codes
